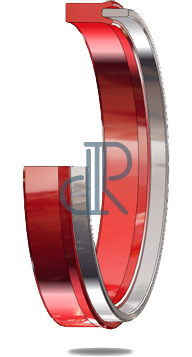

- Piston seal- DK 123
Symmetric piston seal with support ring for simple applications to serve repair purpose, not recommended for new designs profile DK101 preferred. Retainer ring in angled design possible.
Primary use
Seal limitation
Not applicable
| min. Temp. | max. Temp. | max. Speed | max. Pressure | Material / Pre-energizer | |
|---|---|---|---|---|---|
| -20 °C | +115 °C | 0,4 m/s | max. 500 bar | HPU 94° | POM/PTFE/PA |
| -20 °C | +115 °C | 0,4 m/s | max. 500 bar | HPU 55° D | POM/PTFE/PA |
| -50 °C | +115 °C | 0,5 m/s | max. 500 bar | SL-PU 94° | POM/PTFE/PA |
| -50 °C | +115 °C | 0,4 m/s | max. 500 bar | LT-PU 94° | POM/PTFE/PA |
| min. Temp. | max. Temp. | max. Speed | max. Pressure | Material / Pre-energizer | |
| -30 °C | +110 °C | 0,5 m/s | max. 160 bar | NBR 85° | POM/PTFE/PA |
| -20 °C | +150 °C | 0,5 m/s | max. 160 bar | H-NBR 85° | POM/PTFE/PA |
| -20 °C | +220 °C | 0,5 m/s | max. 160 bar | FPM 82° | POM/PTFE/PA |
| -45 °C | +130 °C | 0,5 m/s | max. 160 bar | EPDM 85° | POM/PTFE/PA |
| -60 °C | +200 °C | 0,3 m/s | max. 120 bar | MVQ 85° | POM/PTFE/PA |
*Materijali
- HPU55/POM
- HPU/POM
*Dimenzije
- L1
- ∅ d1
- ∅ D1
*Količina
- /
