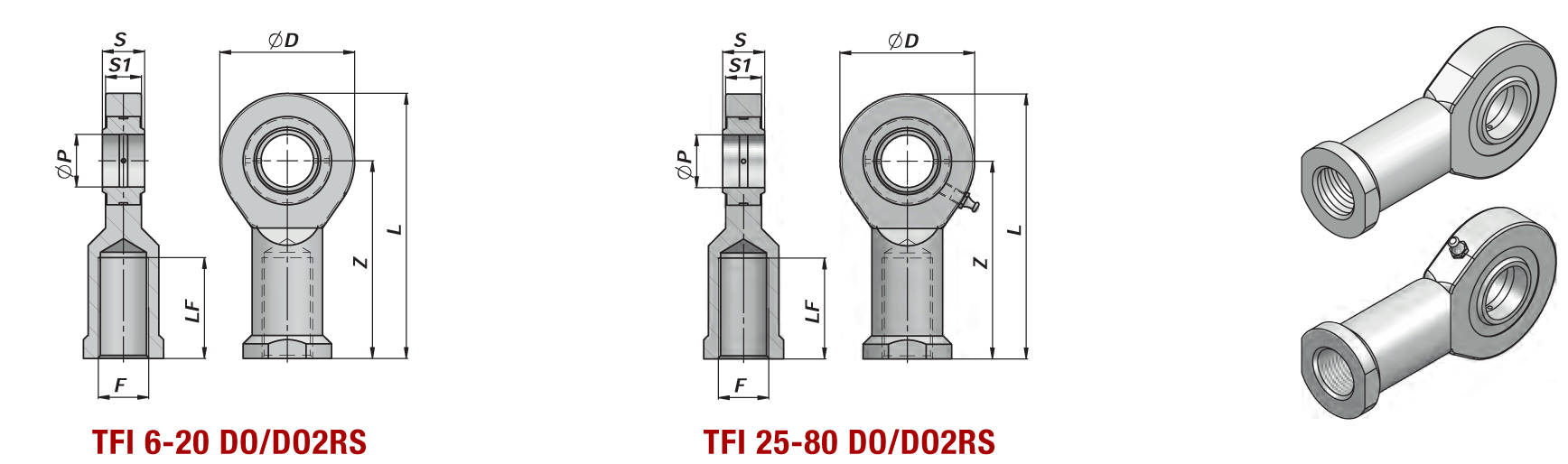

Uške sa G-ležajem / Unutarnji navoj

∅P Z S ∅D S1 L F LF FC (kN)
6 30 16 21 4.3 40.5 M 6x1.5 11 3.4
8 36 8 24 6 48 M 8x1.25 15 5.5
10 43 9 29 7 57.5 M 10x1.5 20 8.1
12 50 10 34 8 67 M 12 x1.75 24 10.8
15 61 12 40 10 81 M 14 x 2 30 17
20 77 16 53 13 103.5 M 20 x 1.5 40 30
25 94 20 64 17 126 M 24 x 2 48 48
30 110 22 73 19 146.5 M 30 x 2 56 62
35 125 25 82 21 166 M 36 x 3 60 80
40 142 28 92 23 188 M 39 x 3 67 100
45 145 32 102 27 196 M 42 x 3 65 127
50 160 35 112 30 216 M 45 x 3 69 156
