• Rod seal- DS 205

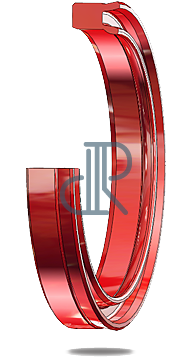

pneumatic rod seal ds205

Asymmetric rod seal, extremely wear resistant, for use in lubricated or dry pneumatic applications. Special design of sealing lip allows retention of initial lubricating film.

hydraulic seal ds205
  • Primary use
  • Seal limitation
  • Not applicable
min. Temp. max. Temp. max. Speed max. Pressure Material
-20 °C +115 °C 0,4 m/s max. 400 bar HPU 94°
-20 °C +115 °C 0,4 m/s max. 400 bar HPU 55° D
-50 °C +115 °C 0,5 m/s max. 400 bar SL-PU 94°
-50 °C +115 °C 0,4 m/s max. 400 bar LT-PU 94°
min. Temp. max. Temp. max. Speed max. Pressure Material
-30 °C +110 °C 0,5 m/s max. 160 bar NBR 85°
-20 °C +150 °C 0,5 m/s max. 160 bar H-NBR 85°
-20 °C +220 °C 0,5 m/s max. 160 bar FPM 82°
-45 °C +130 °C 0,5 m/s max. 160 bar EPDM 85°
-60 °C +200 °C 0,3 m/s max. 120 bar MVQ 85°
grove dimensions of the rod seals

*Materijali

  • HPU
  • NBR
  • H-NBR
  • EPDM
  • FPM
  • MVQ

*Dimenzije

  •     L1
  •     L2
  • ∅ d1
  • ∅ D2
  • ∅ D1

*Količina

  • /
