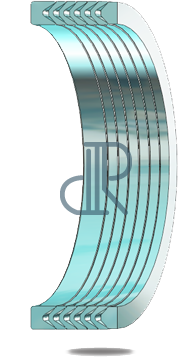

- Rod seal- DS 126 -128
Optimized for high pressure, equal angled chevron design suitable for high pressure range. External spring pretension necessary. Mainly used in chemical, pharmaceutical and food industry.
Primary use
Seal limitation
Not applicable
| min. Temp. | max. Temp. | max. Speed | max. Pressure | Material | |
|---|---|---|---|---|---|
| -200 °C | +260 °C | 10 m/s | max. 400 bar | PTFE pure | |
| -200 °C | +260 °C | 10 m/s | max. 400 bar | PTFE 1 glass | |
| -200 °C | +260 °C | 10 m/s | max. 400 bar | PTFE 2 bronze | |
| -200 °C | +260 °C | 10 m/s | max. 400 bar | PTFE carbon | |
| min. Temp. | max. Temp. | max. Speed | max. Pressure | Material | |
| -200 °C | +260 °C | 10 m/s | max. 400 bar | PTFE turq. | |
| -200 °C | +260 °C | 10 m/s | max. 400 bar | PTFE glass | |
| -200 °C | +260 °C | 10 m/s | max. 400 bar | PTFE graphite | |
| -200 °C | +260 °C | 10 m/s | max. 400 bar | PTFE ekonol | |
| -200 °C | +260 °C | 10 m/s | max. 400 bar | PTFE 25% glass | |
*Materijali
- HPU
- NBR
- H-NBR
- EPDM
- FPM
- MVQ
*Dimenzije
- L1
- L2
- ∅ d1
- ∅ D2
- ∅ D1
*Količina
- /
