• Rod seal- DS 124
hydraulic rod seal ds124

O-ring activated symmetric rod seal, low friction. For extreme low or high speed, suitable for positioning functions.

hydraulic seal ds124
  • Primary use
  • Seal limitation
  • Not applicable
min. Temp. max. Temp. max. Speed max. Pressure Material
-200 °C +260 °C 10 m/s max. 400 bar PTFE pure NBR°70/FPM°75
-200 °C +260 °C 10 m/s max. 400 bar PTFE 1 glass NBR°70/FPM°75
-200 °C +260 °C 10 m/s max. 400 bar PTFE 2 bronze NBR°70/FPM°75
-200 °C +260 °C 10 m/s max. 400 bar PTFE carbon NBR°70/FPM°75
min. Temp. max. Temp. max. Speed max. Pressure Material
-200 °C +260 °C 10 m/s max. 400 bar PTFE turq. NBR°70/FPM°75
-200 °C +260 °C 10 m/s max. 400 bar PTFE glass NBR°70/FPM°75
-200 °C +260 °C 10 m/s max. 400 bar PTFE graphite NBR°70/FPM°75
-200 °C +260 °C 10 m/s max. 400 bar PTFE ekonol NBR°70/FPM°75
-20 °C +130 °C 8 m/s max. 400 bar HPU yellow NBR°70/FPM°75

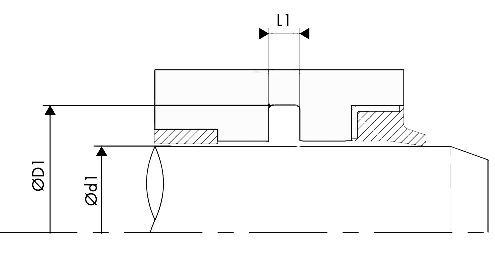

grove dimensions of the rod seals

*Materijali

  • HPU
  • NBR
  • H-NBR
  • EPDM
  • FPM
  • MVQ

*Dimenzije

  •     L1
  • ∅ d1
  • ∅ D1

*Količina

  • /
