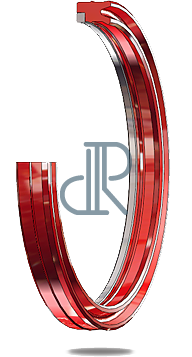

- Rod seal- DS 117R
Asymmetric rod seal DS117R designed for havy duty cylinders. Due to design with active backup ring it is suitable for larger extrusion gaps or higher pressure range.
Primary use
Seal limitation
Not applicable
| min. Temp. | max. Temp. | max. Speed | max. Pressure | Material | |
|---|---|---|---|---|---|
| -20 °C | +115 °C | 0,5 m/s | max. 400 bar | HPU 94° | |
| -20 °C | +115 °C | 0,5 m/s | max. 400 bar | HPU 55° D | |
| -50 °C | +115 °C | 0,5 m/s | max. 400 bar | SL-PU 94° | |
| -50 °C | +115 °C | 0,5 m/s | max. 400 bar | LT-PU 94° | |
| min. Temp. | max. Temp. | max. Speed | max. Pressure | Material | |
| -30 °C | +110 °C | 0,5 m/s | max. 250 bar | NBR 85° | |
| -20 °C | +150 °C | 0,5 m/s | max. 250 bar | H-NBR 85° | |
| -20 °C | +220 °C | 0,5 m/s | max. 250 bar | FPM 82° | |
| -45 °C | +130 °C | 0,5 m/s | max. 250 bar | EPDM 85° | |
| -60 °C | +200 °C | 0,4 m/s | max. 250 bar | MVQ 85° | |
*Materijali
- HPU
- NBR
- H-NBR
- EPDM
- FPM
- MVQ
*Dimenzije
- L1
- L2
- ∅ d1
- ∅ D2
- ∅ D1
*Količina
- /
