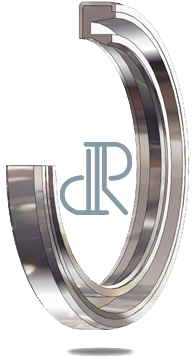

- Rotation seal- DR 203
Rotation lip seal with metal case able a good press-fit installation into axially open housings. Without preload spring for tighter press fit. Wide range of applications in every sector of industry, mainly as protecting element for bearings.
Primary use
Seal limitation
Not applicable
| min. Temp. | max. Temp. | max. Speed | max. Pressure | Material / Back up ring | |
|---|---|---|---|---|---|
| -20 °C | +115 °C | 5 m/s | max. 0.5 bar | HPU 94° | POM/Al/Fe |
| -20 °C | +115 °C | 5 m/s | max. 0.5 bar | HPU 55° D | POM/Al/Fe |
| -50 °C | +115 °C | 6 m/s | max. 0.5 bar | SL-PU 94° | POM/Al/Fe |
| -50 °C | +115 °C | 5 m/s | max. 0.5 bar | LT-PU 94° | POM/Al/Fe |
| min. Temp. | max. Temp. | max. Speed | max. Pressure | Material / Back up ring | |
| -30 °C | +110 °C | 10 m/s | max. 0.5 bar | NBR 85° | POM/Al/Fe |
| -20 °C | +150 °C | 10 m/s | max. 0.5 bar | H-NBR 85° | POM/Al/Fe |
| -20 °C | +220 °C | 10 m/s | max. 0.5 bar | FPM 82° | POM/Al/Fe |
| -45 °C | +130 °C | 10 m/s | max. 0.5 bar | EPDM 85° | POM/Al/Fe |
| -60 °C | +200 °C | 5 m/s | max. 0.5 bar | MVQ 85° | POM/Al/Fe |
