- Rotation seal- DR 106
Elastic, excellent wear resistant V-Ring with interference fit on the shaft, rotates with the shaft, sealing axially against shaft collars, thrust blocks or the outer race of roller bearings, protecting the bearing against dust, dirt, oil splash, water splash and similar media. Acting as a seal- and slinger ring.
Primary use
Seal limitation
Not applicable
| min. Temp. | max. Temp. | max. Speed | max. Pressure | Material | |
|---|---|---|---|---|---|
| -20 °C | +115 °C | 25 m/s | max. 000 bar | HPU 94° | |
| -20 °C | +115 °C | 25 m/s | max. 000 bar | HPU 55° D | |
| -50 °C | +115 °C | 25 m/s | max. 000 bar | SL-PU 94° | |
| -50 °C | +115 °C | 25 m/s | max. 000 bar | LT-PU 94° | |
| min. Temp. | max. Temp. | max. Speed | max. Pressure | Material | |
| -30 °C | +110 °C | 25 m/s | max. 000 bar | NBR 85° | |
| -20 °C | +150 °C | 25 m/s | max. 000 bar | H-NBR 85° | |
| -20 °C | +220 °C | 25 m/s | max. 000 bar | FPM 82° | |
| -45 °C | +130 °C | 25 m/s | max. 000 bar | EPDM 85° | |
| -60 °C | +200 °C | 25 m/s | max. 000 bar | MVQ 85° | |
*Materijali
- HPU/POM
- NBR/POM

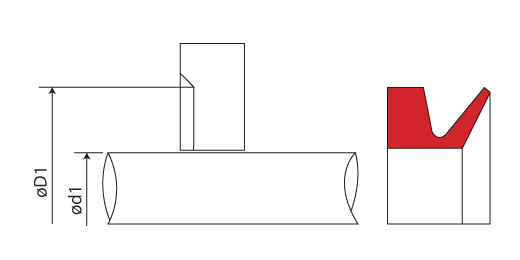

*Dimenzije
- ∅ d1
- ∅ D1
*Količina
- /
