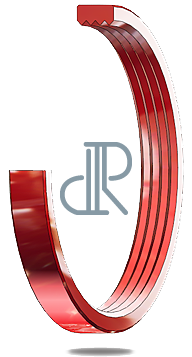

- Rotation seal- DR 104
Space saving rotary seal for pivoting motion in hydraulic systems. Press fit on outside diameter maintains stable fit in the housing, dynamic sealing lips on inside diameter.
Primary use
Seal limitation
Not applicable
| min. Temp. | max. Temp. | max. Speed | max. Pressure | Material | |
|---|---|---|---|---|---|
| -20 °C | +115 °C | 0,2 m/s | max. 160 bar | HPU 94° | |
| -20 °C | +115 °C | 0,2 m/s | max. 160 bar | HPU 55° D | |
| -50 °C | +115 °C | 0,3 m/s | max. 160 bar | SL-PU 94° | |
| -50 °C | +115 °C | 0,2 m/s | max. 160 bar | LT-PU 94° | |
| min. Temp. | max. Temp. | max. Speed | max. Pressure | Material | |
| -30 °C | +110 °C | 0,2 m/s | max. 100 bar | NBR 85° | |
| -20 °C | +150 °C | 0,2 m/s | max. 100 bar | H-NBR 85° | |
| -20 °C | +220 °C | 0,2 m/s | max. 100 bar | FPM 82° | |
| -45 °C | +130 °C | 0,2 m/s | max. 100 bar | EPDM 85° | |
| -60 °C | +200 °C | 0,1 m/s | max. 100 bar | MVQ 85° | |
*Materijali
- HPU/POM
- NBR/POM
*Dimenzije
- L1
- ∅ d1
- ∅ D1
*Količina
- /
