- Pneumatic piston seal- DP 103
DP103 is five piece double acting sealing set consists of aluminium body, two elastomeric sealing elements, one guide ring, one magnet and an O-ring for the inner sealing..
Primary use
Seal limitation
Not applicable
| min. Temp. | max. Temp. | max. Speed | max. Pressure | Material | |
|---|---|---|---|---|---|
| -30 °C | +80 °C | 1 m/s | max. 16 bar | HPU | Fe |
| / | / | / | / | / | |
| / | / | / | / | / | |
| / | / | / | / | / | |
| min. Temp. | max. Temp. | max. Speed | max. Pressure | Material | |
| / | / | / | / | / | |
| / | / | / | / | / | |
| / | / | / | / | / | |
| / | / | / | / | / | |
| / | / | / | / | / | |
*Materijali
- NBR

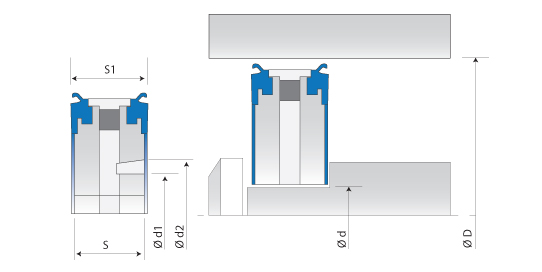

*Dimenzije
- S
- S1
- ∅ d1
- ∅ d2
- ∅ d
- ∅ D
*Količina
- /
