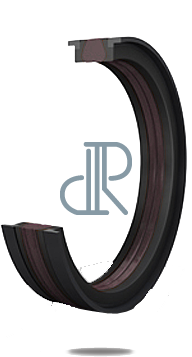

- Piston seal- DK 201
DK201 is a five piece double acting compact seal which consists of one multiple lip elastomeric nitrile rubber sealing element, two polyester elastomer back-up rings on both sides to prevent extrusion into the sealing gap and two special profiled thermoplastic guide rings to absorb transverse forces.
Primary use
Seal limitation
Not applicable
| min. Temp. | max. Temp. | max. Speed | max. Pressure | Material/ Back up ring | |
|---|---|---|---|---|---|
| -30 °C | +105 °C | 0,5 m/s | max. 700 bar | NBR°85 | POM/TPE |
| -30 °C | +105 °C | 0,5 m/s | max. 700 bar | NBR°85 | POM/TPE |
| -30 °C | +105 °C | 0,5 m/s | max. 700 bar | NBR°85 | POM/TPE |
| -30 °C | +105 °C | 0,5 m/s | max. 700 bar | NBR°85 | POM/TPE |
| min. Temp. | max. Temp. | max. Speed | max. Pressure | Material/ O-ring | |
| / | / | / | / | / | / |
| / | / | / | / | / | / |
| / | / | / | / | / | / |
| / | / | / | / | / | / |
| / | / | / | / | / | / |
*Materijali
- NBR/TPU/POM

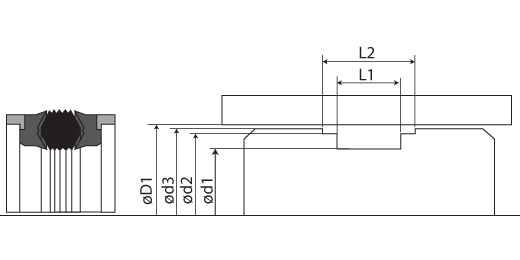

*Dimenzije
- L1
- L2
- ∅ d1
- ∅ d2
- ∅ d3
- ∅ D1
*Količina
- /
