• Piston seal- DK 106

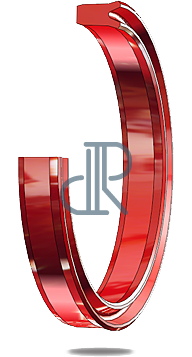

hydraulic piston seal dk106

Symmetric piston seal for simple standard applications, not recommended for new designs profile DK101 preferred.

hidraulični brisač da101
  • Primary use
  • Seal limitation
  • Not applicable
min. Temp. max. Temp. max. Speed max. Pressure Material
-20 °C +115 °C 0,4 m/s max. 400 bar HPU 94°
-20 °C +115 °C 0,4 m/s max. 400 bar HPU 55° D
-50 °C +115 °C 0,5 m/s max. 400 bar SL-PU 94°
-50 °C +115 °C 0,4 m/s max. 400 bar LT-PU 94°
min. Temp. max. Temp. max. Speed max. Pressure Material
-30 °C +110 °C 0,5 m/s max. 160 bar NBR 85°
-20 °C +150 °C 0,5 m/s max. 160 bar H-NBR 85°
-20 °C +220 °C 0,5 m/s max. 160 bar FPM 82°
-45 °C +130 °C 0,5 m/s max. 160 bar EPDM 85°
-60 °C +200 °C 0,3 m/s max. 160 bar MVQ 85°
grove dimensions of the rod seals

*Materijali

  • SL-PU
  • NBR
  • H-NBR
  • EPDM
  • FPM

*Dimenzije

  •     L1
  • ∅ d1
  • ∅ D1
