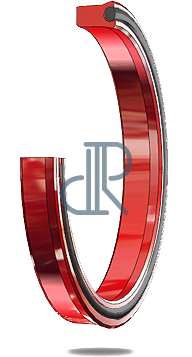

- Piston seal- DK 103
O-ring activated asymmetric piston seal. Interference fit on inside diameter maintains stable fit in the housing. Design provides ultimate sealing effect. Especially suitable for short stroke applications (e.g. spindle seals, coupling actuators).
Primary use
Seal limitation
Not applicable
| min. Temp. | max. Temp. | max. Speed | max. Pressure | Material | |
|---|---|---|---|---|---|
| -20 °C | +115 °C | 0,4 m/s | max. 400 bar | HPU 94° | NBR70°/FPM75° |
| -20 °C | +115 °C | 0,4 m/s | max. 400 bar | HPU 55° D | NBR70°/FPM75° |
| -50 °C | +115 °C | 0,5 m/s | max. 400 bar | SL-PU 94° | NBR70°/FPM75° |
| -50 °C | +115 °C | 0,4 m/s | max. 400 bar | LT-PU 94° | NBR70°/FPM75° |
| min. Temp. | max. Temp. | max. Speed | max. Pressure | Material | |
| -30 °C | +110 °C | 0,5 m/s | max. 160 bar | NBR 85° | NBR70°/FPM75° |
| -20 °C | +150 °C | 0,5 m/s | max. 160 bar | H-NBR 85° | NBR70°/FPM75° |
| -20 °C | +220 °C | 0,5 m/s | max. 160 bar | FPM 82° | NBR70°/FPM75° |
| -45 °C | +130 °C | 0,5 m/s | max. 160 bar | EPDM 85° | NBR70°/FPM75° |
| -60 °C | +200 °C | 0,3 m/s | max. 120 bar | MVQ 85° | NBR70°/FPM75° |
