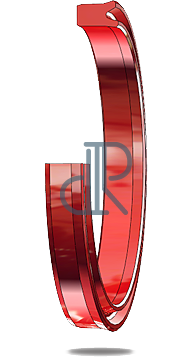

- Piston seal- DK 101
Asymmetric piston seal for standard applications. Design provides stable fit in the housing, ultimate sealing effect over a wide temperature range. Avoids extensive drag pressure. Back-to-back arrangement for double acting pistons or to separate different fluids.
Primary use
Seal limitation
Not applicable
| min. Temp. | max. Temp. | max. Speed | max. Pressure | Material | |
|---|---|---|---|---|---|
| -20 °C | +115 °C | 0,4 m/s | max. 400 bar | HPU 94° | |
| -20 °C | +115 °C | 0,4 m/s | max. 400 bar | HPU 55° D | |
| -50 °C | +115 °C | 0,5 m/s | max. 400 bar | SL-PU 94° | |
| -50 °C | +115 °C | 0,4 m/s | max. 400 bar | LT-PU 94° | |
| min. Temp. | max. Temp. | max. Speed | max. Pressure | Material | |
| -30 °C | +110 °C | 0,5 m/s | max. 160 bar | NBR 85° | |
| -20 °C | +150 °C | 0,5 m/s | max. 160 bar | H-NBR 85° | |
| -20 °C | +220 °C | 0,5 m/s | max. 160 bar | FPM 82° | |
| -45 °C | +130 °C | 0,5 m/s | max. 160 bar | EPDM 85° | |
| -60 °C | +200 °C | 0,3 m/s | max. 160 bar | MVQ 85° | |
*Materijali
- HPU
- NBR
- H-NBR
- EPDM
- FPM
*Dimenzije
- L1
- ∅ d1
- ∅ D1
*Količina
- /
