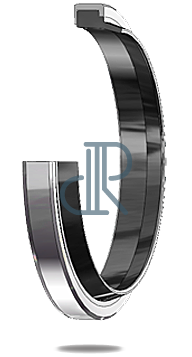

- Wiper - DA 106
Wiper for pneumatic application with mounting cage for press fit installation into axially open housings. Wiping edge assures a reliable protection against penetration of dust and dirt, the use of plastic/metal mounting cages avoids corrosion in the press fit. For housings according to ISO 6195-Type B.
Primary use
Seal limitation
Not applicable
| min. Temp. | max. Temp. | max. Speed | max. Pressure | Material | |
|---|---|---|---|---|---|
| -20 °C | +115 °C | 0,4 m/s | HPU 94° | POM/PTFE/STEEL | |
| -20 °C | +115 °C | 0,4 m/s | HPU 55° D | POM/PTFE/STEEL | |
| -50 °C | +115 °C | 0,5 m/s | SL-PU 94° | POM/PTFE/STEEL | |
| -50 °C | +115 °C | 0,4 m/s | LT-PU 94° | POM/PTFE/STEEL | |
| min. Temp. | max. Temp. | max. Speed | max. Pressure | Material | |
| -30 °C | +110 °C | 0,5 m/s | NBR 85° | POM/PTFE/STEEL | |
| -20 °C | +150 °C | 0,4 m/s | H-NBR 85° | POM/PTFE/STEEL | |
| -20 °C | +220 °C | 0,5 m/s | FPM 82° | POM/PTFE/STEEL | |
| -45 °C | +130 °C | 0,4 m/s | EPDM 85° | POM/PTFE/STEEL | |
| -60 °C | +200 °C | 0,4 m/s | MVQ 85° | POM/PTFE/STEEL | |
