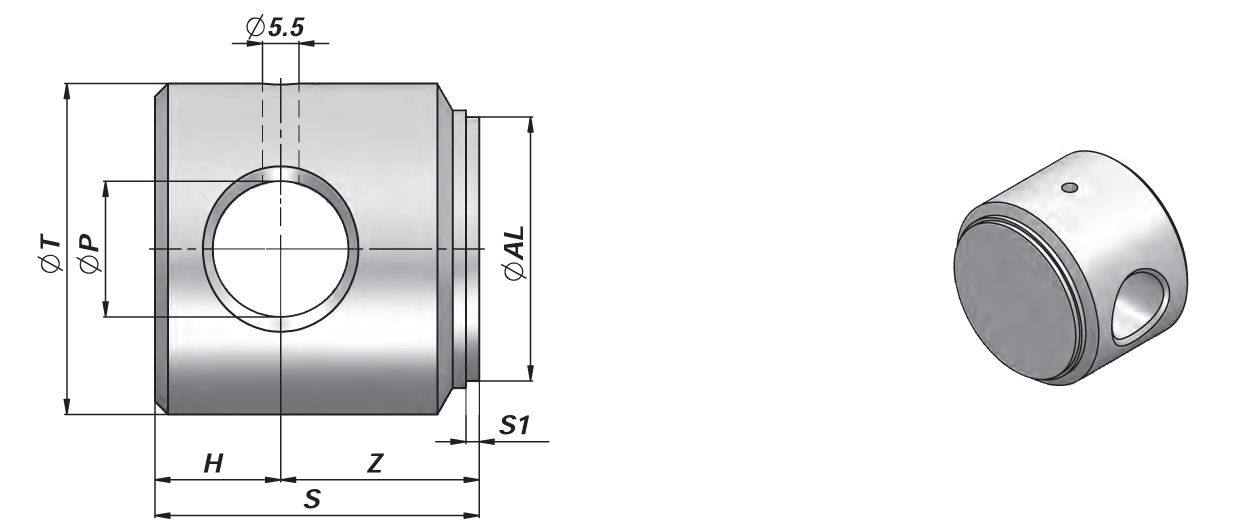

End plugs with cross hole

∅AL ∅T ∅P Z H S S1
25 35 12.10 18 12 30 2
30 40 14.10 16 14 30 2
35 45 16.10 20 15 35 2
40 50 20.25 22 18 40 2
40 50 20.50 30 19 49 2
45 55 20.25 25 20 45 2
50 60 25.25 27 22 49 2
50 60 23.10 28 22 50 2
50 60 25.50 45 25 70 2
55 65 25.25 28 22 50 2
60 70 25.25 25 22 47 2
63 73 25.25 30 23 53 2
65 75 25.25 28 22 50 2
70 80 30.25 35 28 63 2
75 90 30.25 35 25 60 2
80 90 30.25 32 28 60 2
85 100 35.25 35 28 63 2
90 105 35.25 35 28 63 2
100 115 30.25 35 28 63 2
110 125 40.25 40 35 75 2
120 140 50.50 50 45 95 2
125 145 50.50 50 45 95 2
140 160 60.50 60 50 110 2
150 170 70.50 75 55 130 2
160 180 80.50 75 65 140 2

MATERIAL: S355J0 ( Fe510C ) - S355JR ( A105 )
ON REQUEST: Stainless steel AISI316L
